Portal Family
Description

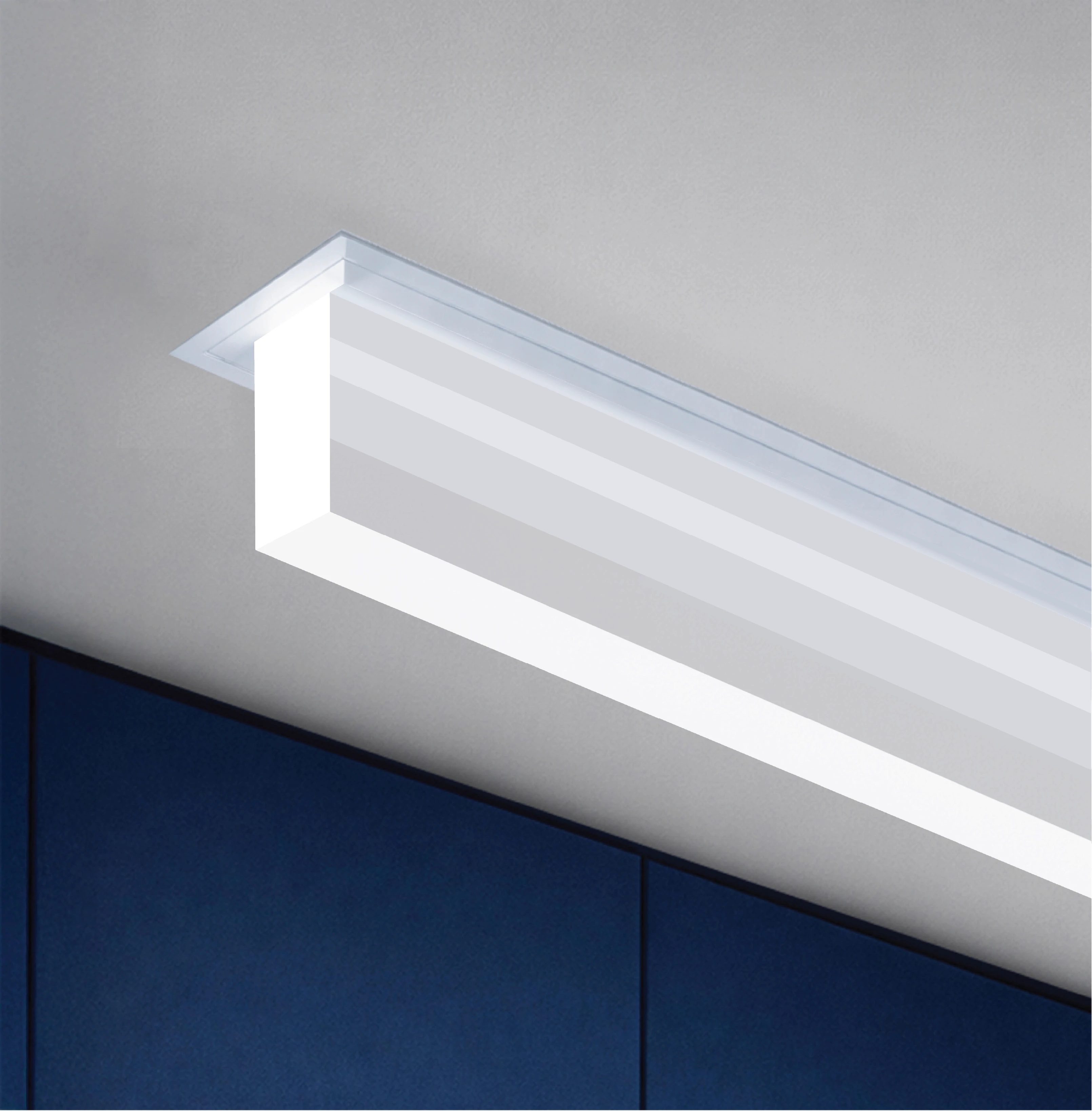

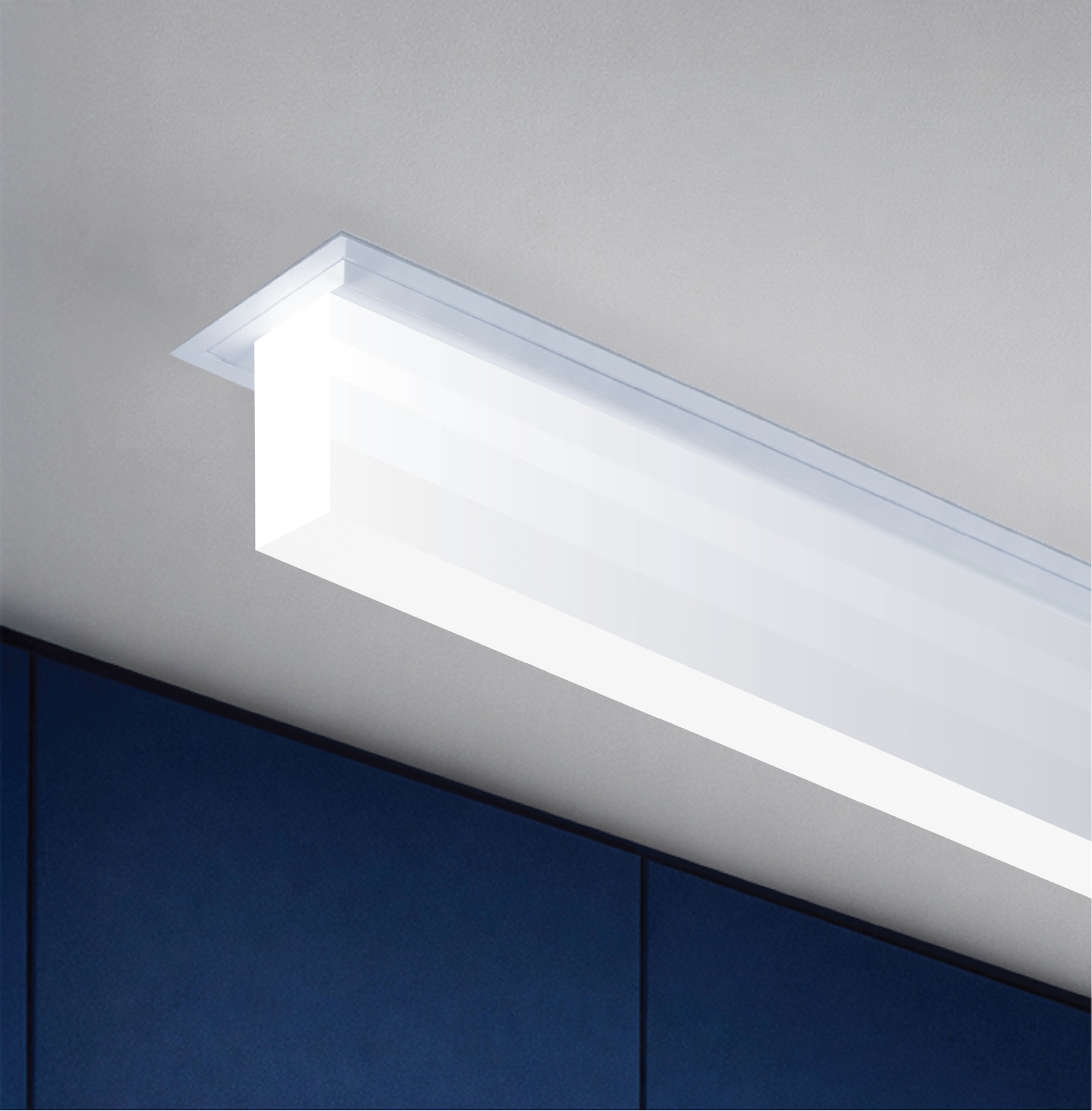

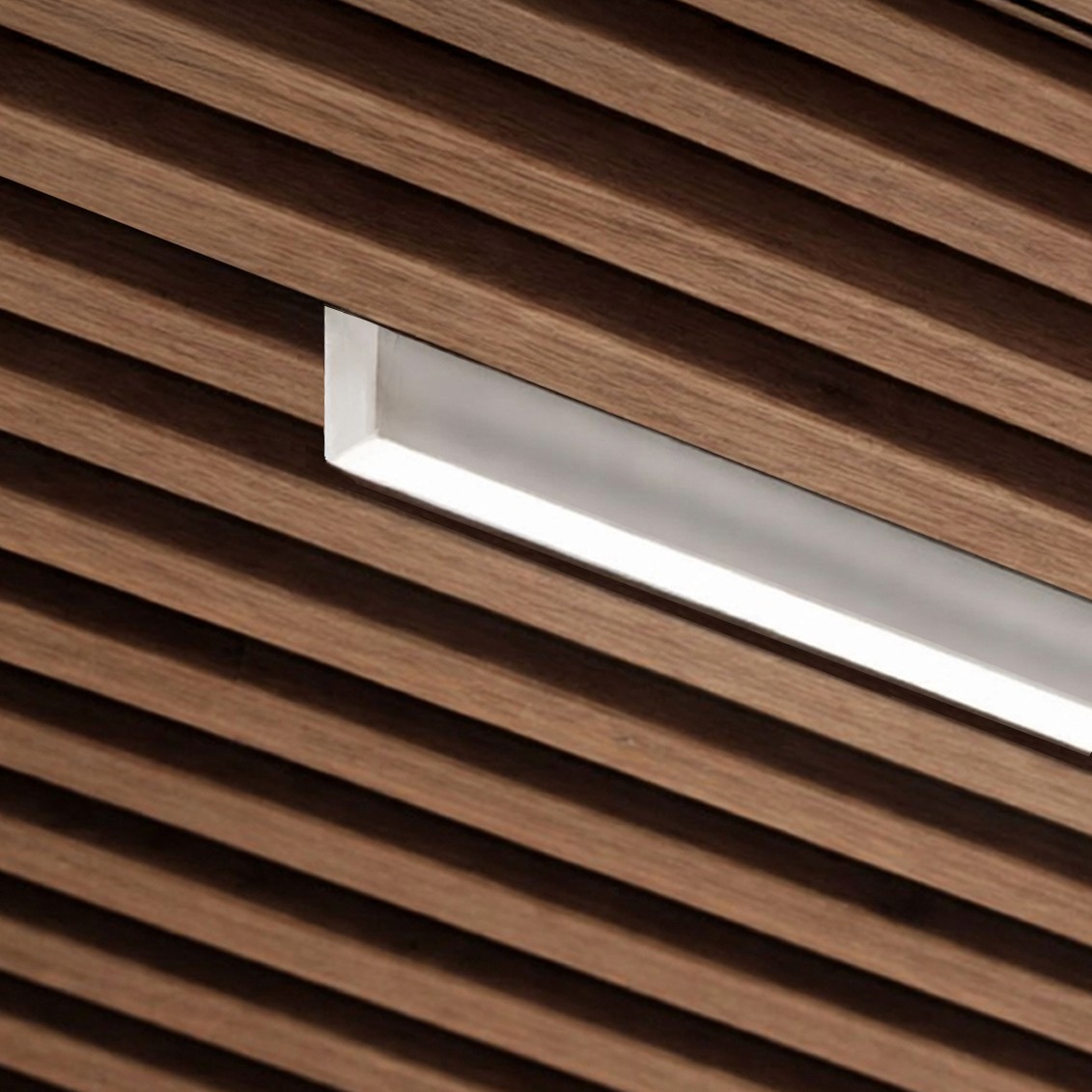

1.5" wide recessed fully illuminated frosted acrylic block lens portal fixture for individual and continuous row mounting. BABA, BAA, ARRA, RoHS, REACH and Prop 65 compliant. Extruded aluminum housing for superior fit and finish.
Light Distribution Options
Direct
Lens Finish Options
3 Faces Frosted
5 Faces Frosted
Lens Height Options
3 Inch
2 Inch
1 Inch
CRI Options
80+
90+
Color/CCT Options
2700K
3000K
3500K
4000K
5000K
RGB
RGBW
Available Finishes
Due to variances in computer monitors and color printers, these color swatches should be used for general reference only. For a sheet of physical color samples, please consult factory.
White
Black
Silver
Gray
Off White
Light Gray
Aluminum
Bronze
White
Red
Yellow
Green
Blue
Black
Optics Options
General Direct
Mounting Options
- Gypsum with 1/2" cover flange -
- Gypsum with mud flange -
- 15/16" flat grid with flat tiles
- 15/16" flat grid with tegular tiles
- 9/16" flat grid with flat tiles -
- 9/16" flat grid with tegular tiles -
- 9/16" slot grid -
- No flange or interface -
