Perimeter Family
Description

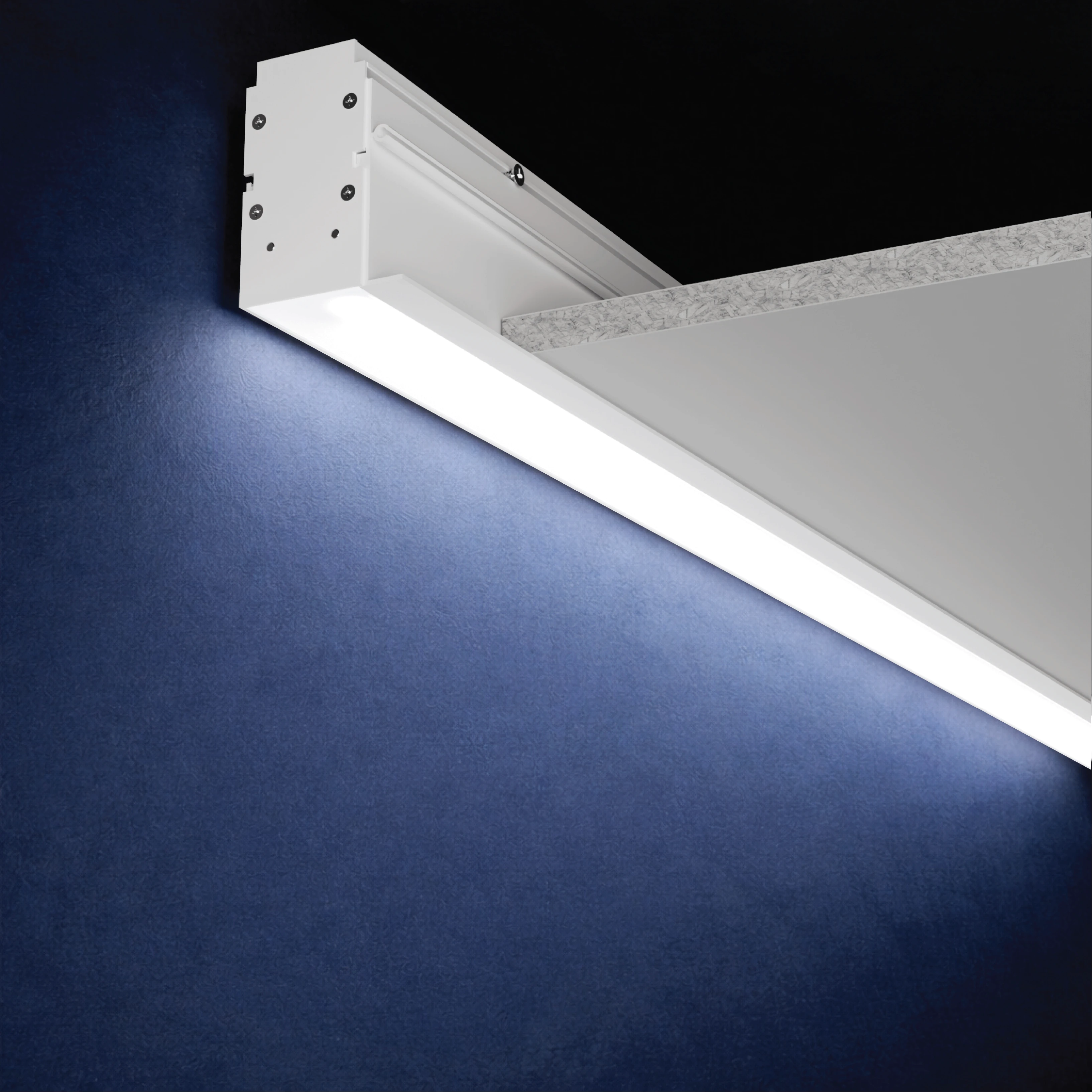

1 ¹³⁄₁₆” wide linear lighting system for perimeter lighting, recessed in grid or hard ceiling for direct illumination. Runs and patterns can be built to field dimensions. Up to 3" lens regress with continuous illumination in custom length runs and patterns with illuminated corners.
I.C. rated. BABA, BAA, ARRA, RoHS, REACH and Prop 65 compliant. Extruded aluminum housing for superior fit and finish.
Light Distribution Options

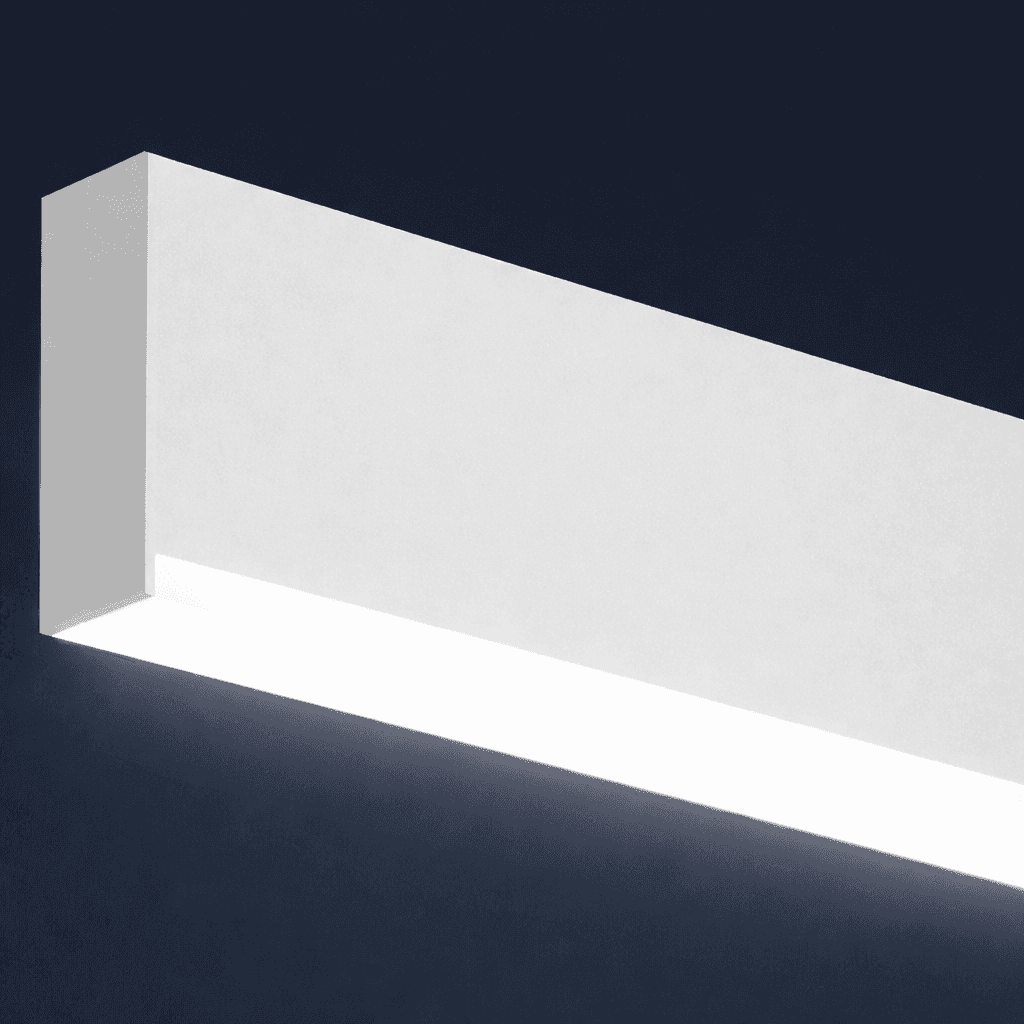

Direct
Lens Options

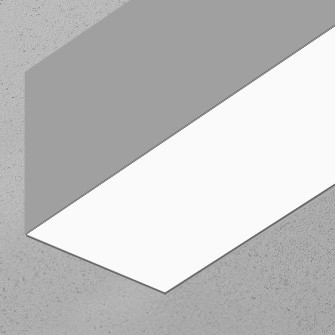

Flush

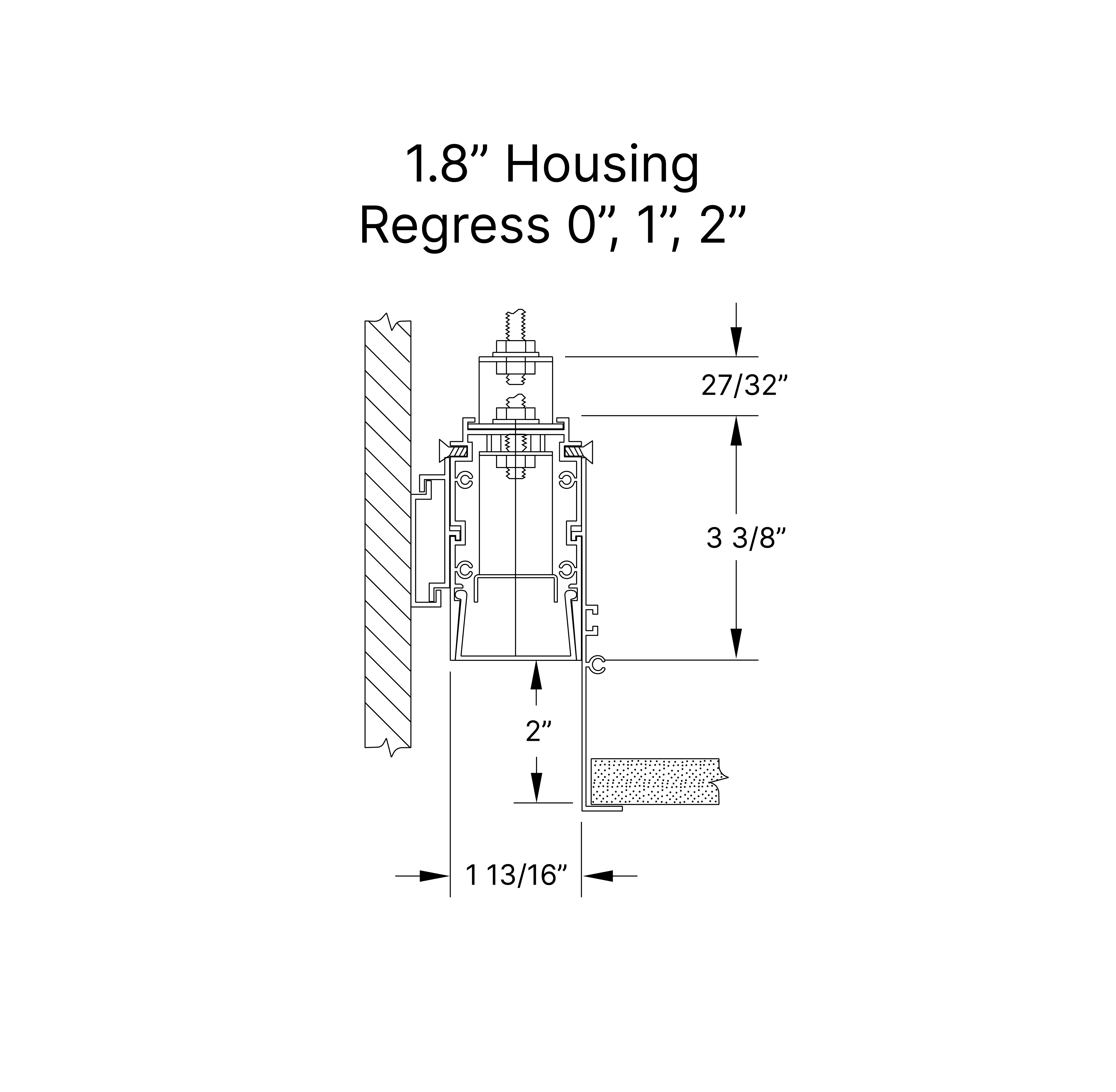

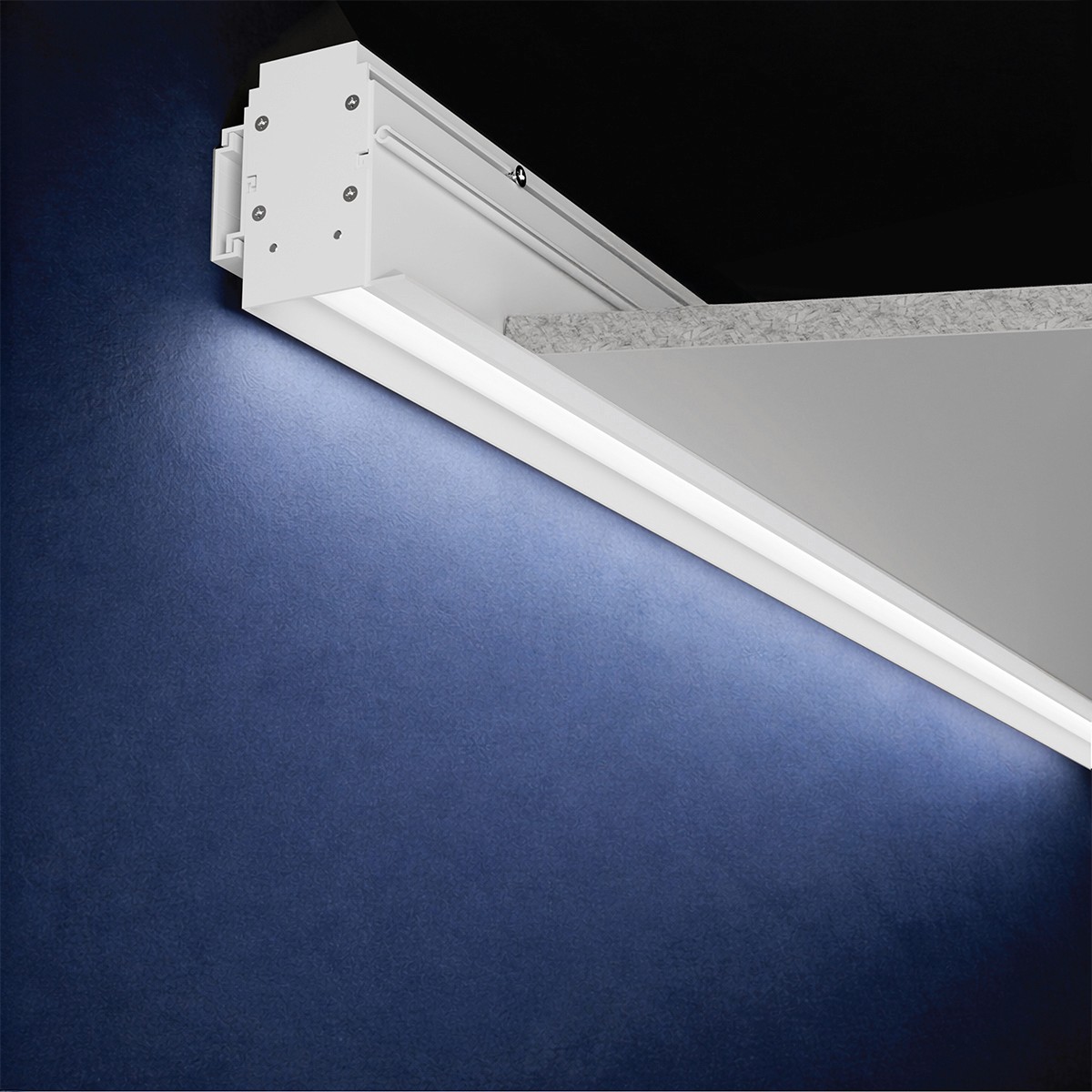

Regressed
CRI Options
80+
90+
Color/CCT Options
2700K
3000K
3500K
4000K
5000K
RGB
RGBW
Available Finishes
Due to variances in computer monitors and color printers, these color swatches should be used for general reference only. For a sheet of physical color samples, please consult factory.
White
Black
Silver
Gray
Off White
Light Gray
Aluminum
Bronze
White
Red
Yellow
Green
Blue
Black
Mounting Options
- Gypsum or grid with 1/2" flange
- Gypsum with mud flange -
